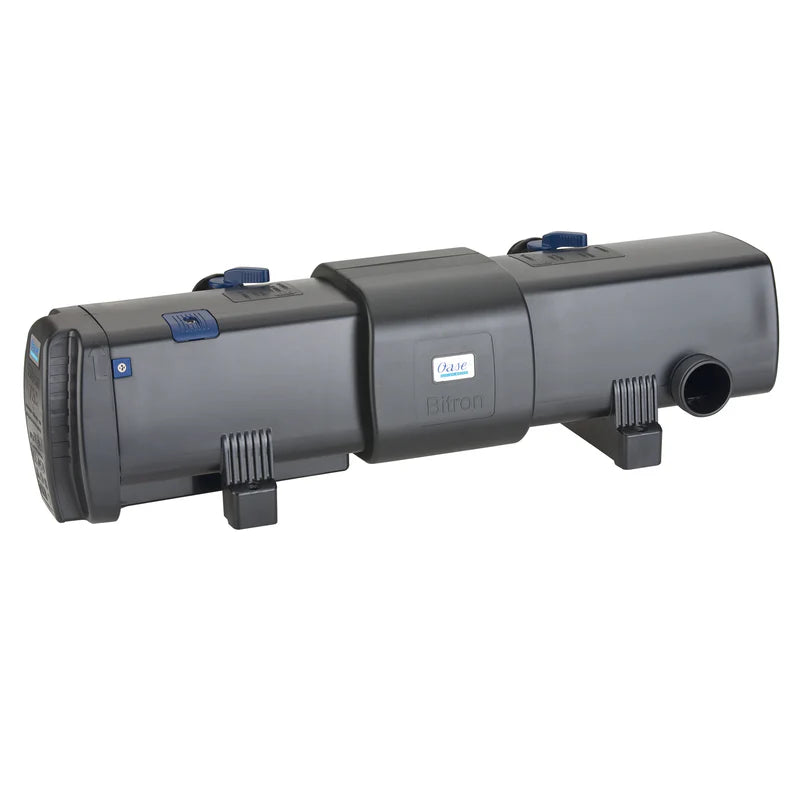

OASE Bitron C UVC Clarifier - 110W | 110m3 Pond Capacity

The OASE Bitron C 110 UVC is a powerful ultraviolet clarifier engineered for large pond systems where reliable algae control and bacterial reduction are essential. With 110W of concentrated UVC power, it effectively eliminates suspended algae (green water), reduces harmful bacteria and improves overall pond clarity in ponds up to 110m³.

Its intelligent bypass technology ensures optimised radiation exposure even at high flow rates. By balancing water throughput with irradiation time, the Bitron C 110 delivers maximum UV efficiency without restricting pump performance — making it ideal for large filter systems and high-capacity circulation setups.

A key feature is the patented automatic cleaning rotor integrated into the unit. This continuously cleans the quartz sleeve, maintaining consistent UV output and eliminating the need for frequent manual cleaning. Built-in magnets further protect the UVC technology from limescale deposits, enhancing durability and performance.

The unit includes a visual function monitor for lamp operation, along with a bulb change indicator and water temperature display. Quick-release technology makes maintenance and lamp replacement straightforward and efficient.

Compatible with major OASE filtration systems including BioTec 30, BioTec ScreenMatic² 90–140000 and ProfiClear, the Bitron C 110 provides professional-grade pond clarification backed by the OASE Clear Water Guarantee when used with approved OASE flow-through filters.

• 110W High-Output UVC Power - Ideal for large ornamental and koi ponds.
• Suitable for Ponds up to 110m³ - Designed for larger residential and professional pond systems.
• Patented Automatic Quartz Cleaning Rotor - Permanent self-cleaning for maximum UV efficiency.
• Bypass Technology - Maintains optimal irradiation even at high flow-through rates.

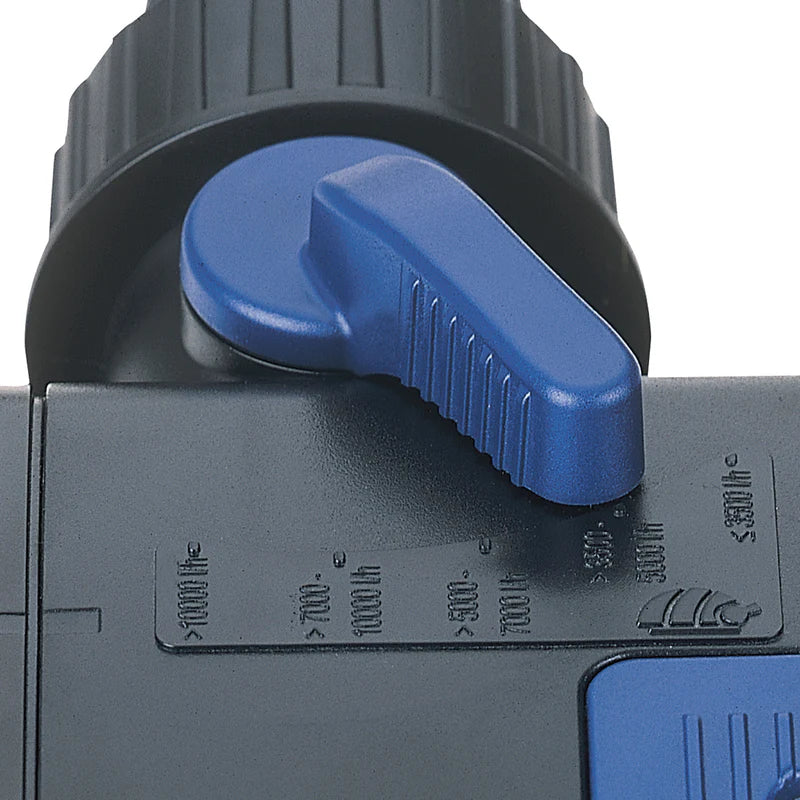

• Manual Bypass Control - Adjust water flow for perfect matching with your filter pump.
• Integrated Limescale Protection - Built-in magnets help prevent calcium deposits.

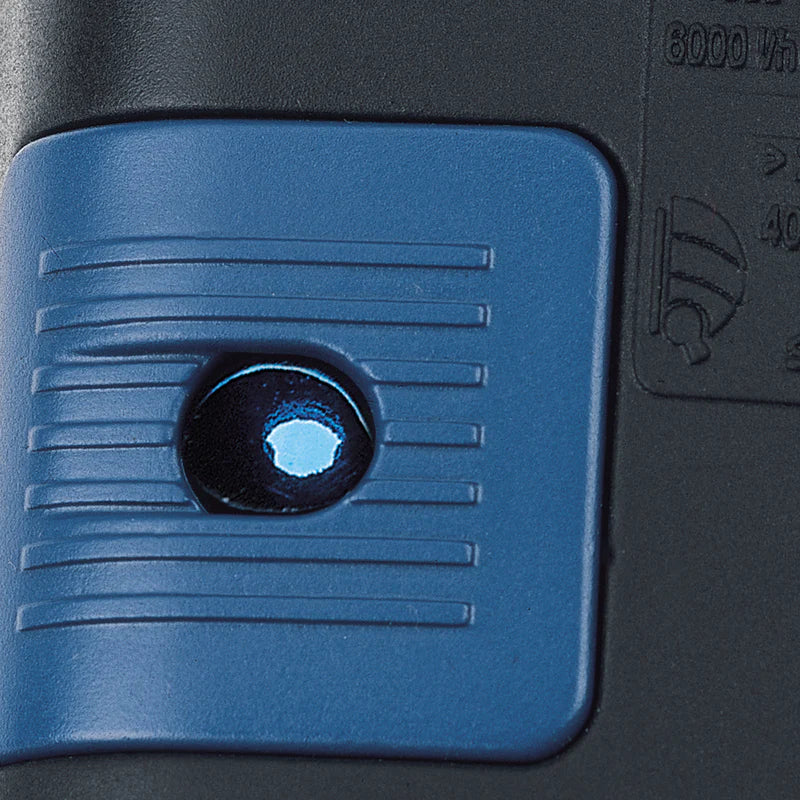

• Visual Function Monitor - Quick and easy confirmation of UVC bulb operation.

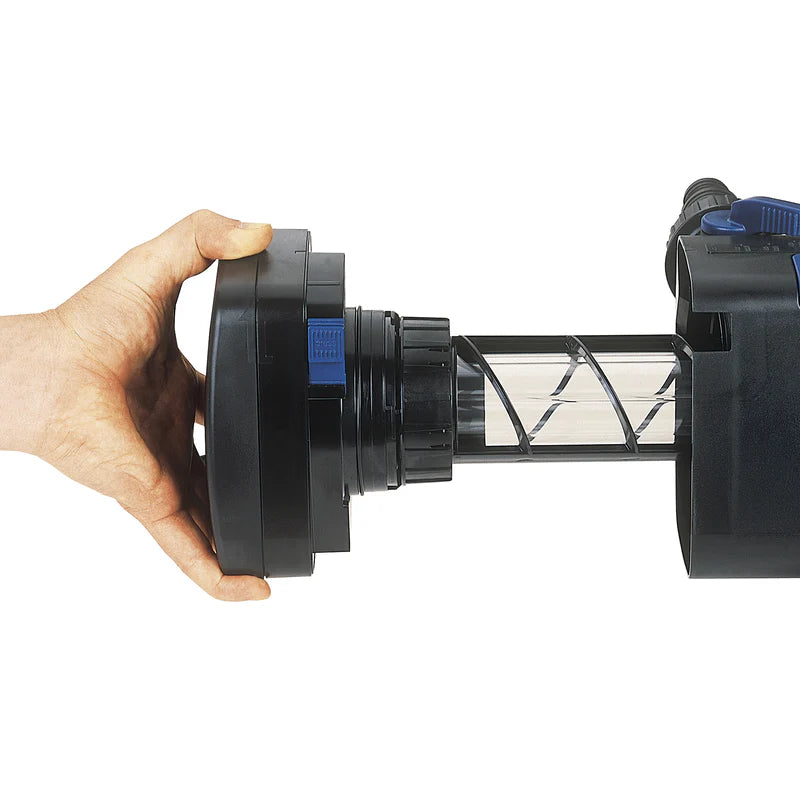

• Quick-Release Maintenance System - Simple bulb replacement and servicing.
• Heavy-Duty Impact-Resistant Housing - Built for long-term outdoor durability.
• OASE Clear Water Guarantee - When used with compatible OASE filter systems.

• Product Number: 03OU010 | 56902
• Rated Voltage: 220 - 240 V / 50/60 Hz
• Power Consumption: 110 W
• UVC Power: 110 W
• Power Cable Length: 5 m
• Net Weight: 6.5 kg
• Guarantee: 2 Years
• Bypass Control: Manual
• Function Check: Visual
• Connection Inlet: 19 / 25 / 32 / 38 / 50 mm (¾", 1", 1¼", 1½", 2")
• Connection Outlet: 25 / 32 / 38 mm (1", 1¼", 1½")
• Minimum Flow Rate: 12,000 l/h
• Maximum Flow Rate: 40,000 l/h
• Max Operating Pressure: 1 bar
• Suitable for Ponds (Ornamental): up to 110 m³
• Suitable for Ponds with Fish: up to 55 m³
• Suitable for Ponds with Koi: up to 27.5 m³
• Compatible With: BioTec 30, BioTec ScreenMatic² 90 - 140000, ProfiClear
