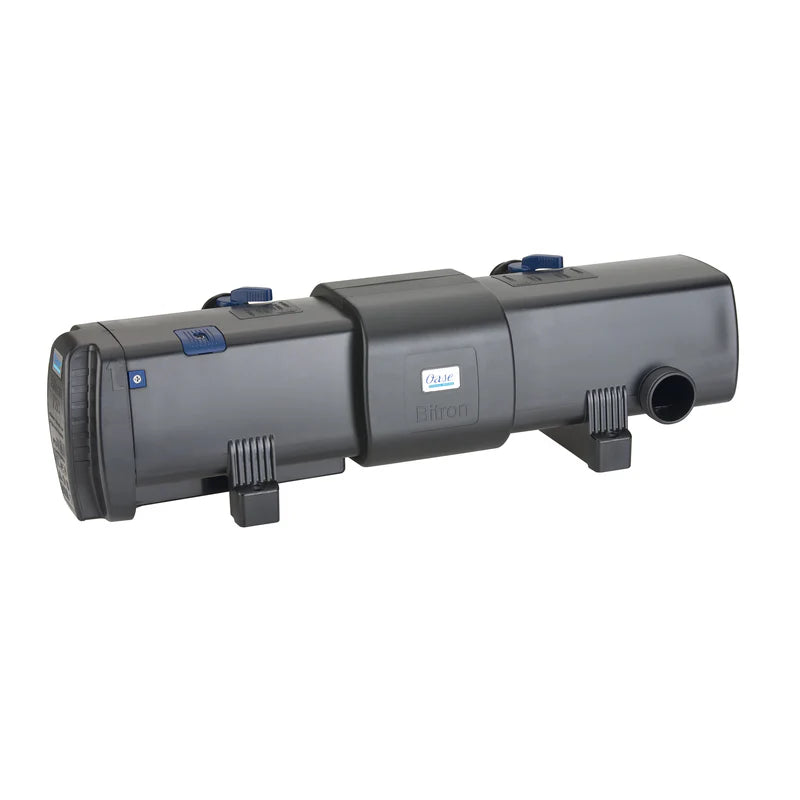

OASE Bitron C UVC Clarifier - 36W | 40m3 Pond Capacity

The OASE Bitron C 36 UVC is a powerful mid-range ultraviolet clarifier designed to eliminate suspended algae (green water), reduce harmful bacteria and improve overall pond clarity. With 36W of UVC output, it is ideal for ornamental and moderately stocked fish ponds up to 40m³.

Engineered with intelligent bypass technology, the Bitron C 36 ensures optimised irradiation of polluted water even at high flow rates. The clever bypass system balances water throughput with radiation duration, delivering maximum UV performance without restricting circulation.

A patented automatic cleaning rotor continuously cleans the quartz sleeve, maintaining consistent UVC output and significantly reducing maintenance requirements. Integrated magnets protect the internal UVC components from limescale deposits, enhancing durability and long-term performance.

The unit features a visual function monitor for quick lamp operation checks and includes quick-release technology for simple bulb replacement. Built with a high-quality, impact-resistant housing, the Bitron C 36 is designed for reliable outdoor performance.

Compatible with OASE BioSmart 18000/36000 and BioTec ScreenMatic² 40–60000 systems, it delivers professional-grade water clarification backed by the OASE Clear Water Guarantee when used with approved OASE flow-through filters.

• 36W High-Performance UVC Output - Effective clarification for medium-sized ponds.
• Suitable for Ponds up to 40m³ - Ideal for ornamental, fish and lightly stocked koi ponds.
• Patented Automatic Quartz Cleaning Rotor - Continuous self-cleaning maintains peak UV efficiency.
• Bypass Technology - Ensures optimal irradiation even at higher flow-through rates.

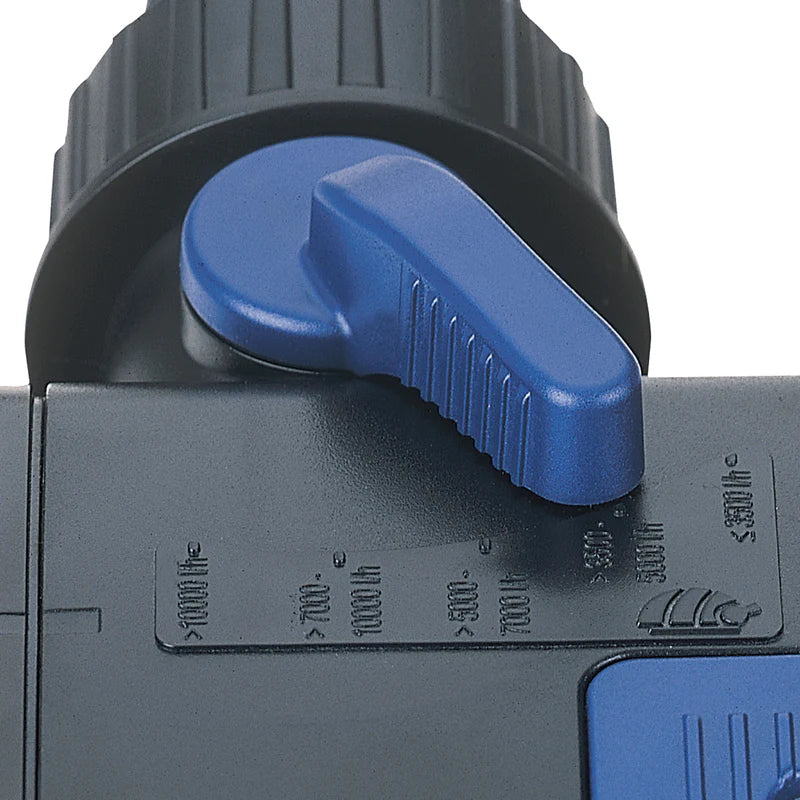

• Manual Flow Adjustment - Fine-tune water throughput to match your filter pump.
• Integrated Limescale Protection - Built-in magnets reduce calcium buildup.

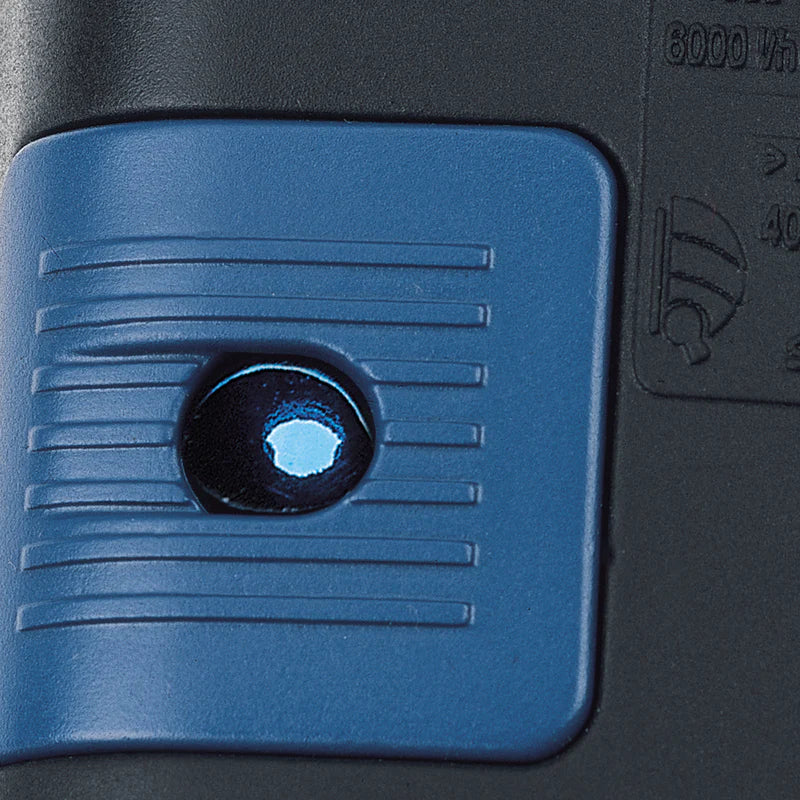

• Visual Function Check - Quick confirmation of UVC lamp operation.

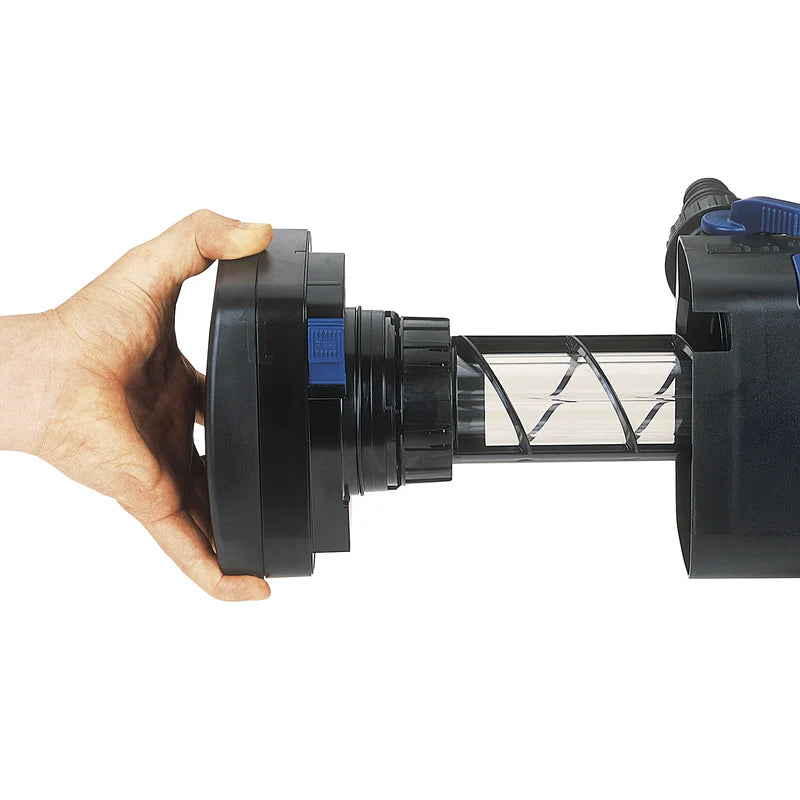

• Quick-Release System - Simple bulb replacement and easy maintenance.

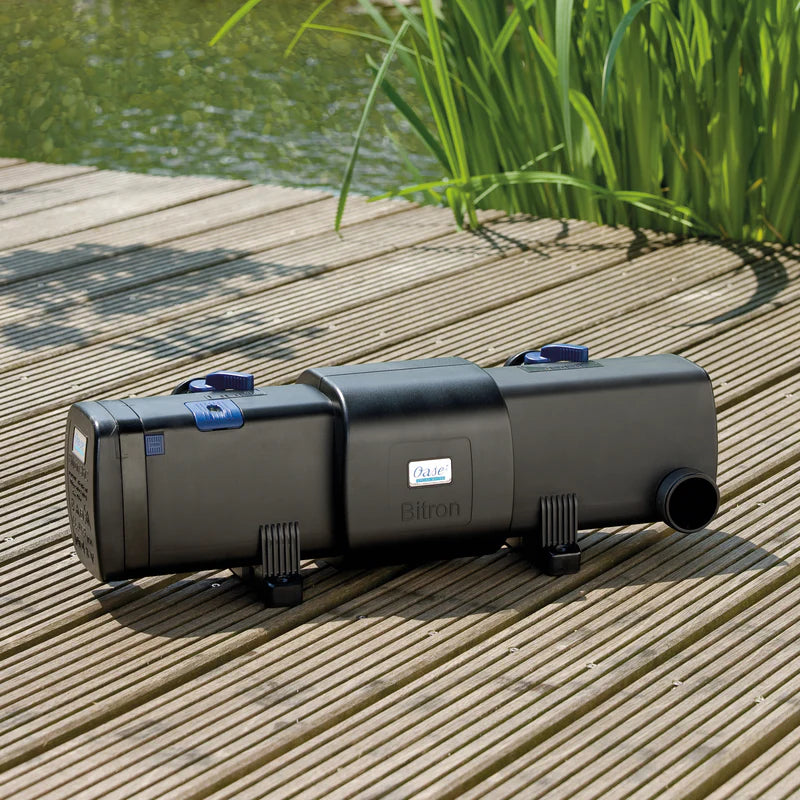

• Impact-Resistant Housing - Durable and built for long-term outdoor use.
• OASE Clear Water Guarantee - When paired with compatible OASE filtration systems.

• Product Number: 03OU012 | 56799
• Rated Voltage: 220 - 240 V / 50/60 Hz
• Power Consumption: 36 W
• UVC Power: 36 W
• Power Cable Length: 5 m
• Net Weight: 3.97 kg
• Guarantee: 2 Years
• Bypass Control: Manual
• Function Check: Visual
• Connection Inlet: 19 / 25 / 32 / 38 / 50 mm (¾", 1", 1¼", 1½", 2")
• Connection Outlet: 25 / 32 / 38 mm (1", 1¼", 1½")
• Minimum Flow Rate: 8,000 l/h
• Maximum Flow Rate: 30,000 l/h
• Max Operating Pressure: 0.5 bar
• Suitable for Ponds (Ornamental): up to 40 m³
• Suitable for Ponds with Fish: up to 20 m³
• Suitable for Ponds with Koi: up to 10 m³
• Compatible With: BioSmart 18000 / 36000, BioTec ScreenMatic² 40 - 60000
