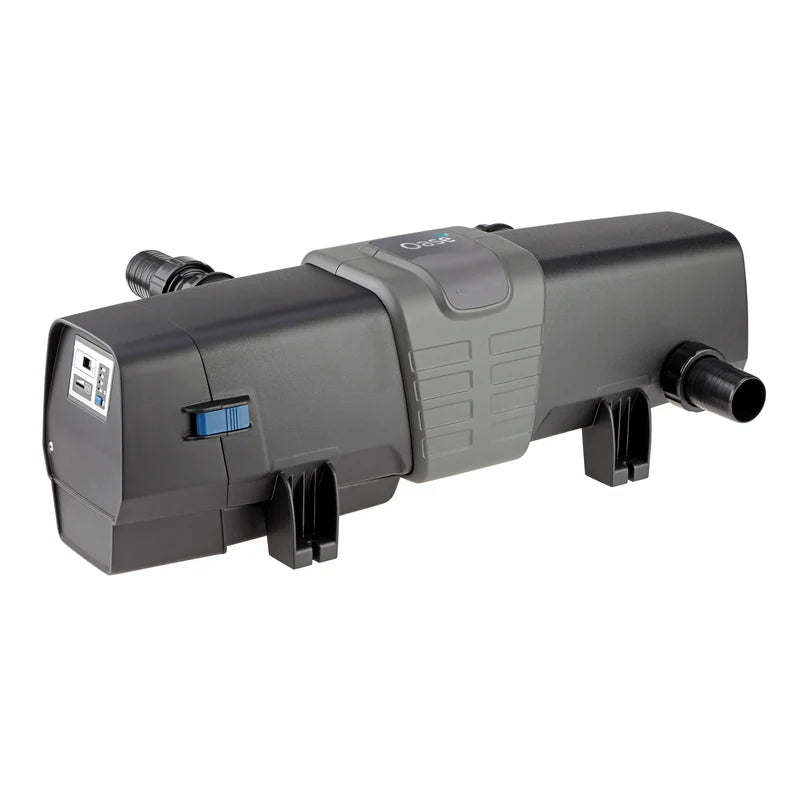

OASE Bitron Eco UVC Clarifier - 180W | 180m3 Pond Capacity

The OASE Bitron Eco 180 UVC is a high-performance ultraviolet clarifier engineered for large pond systems requiring maximum effectiveness and energy efficiency. Designed to deliver concentrated UVC power, it provides crystal-clear water in ponds up to 180m³, including koi and heavily stocked ponds.

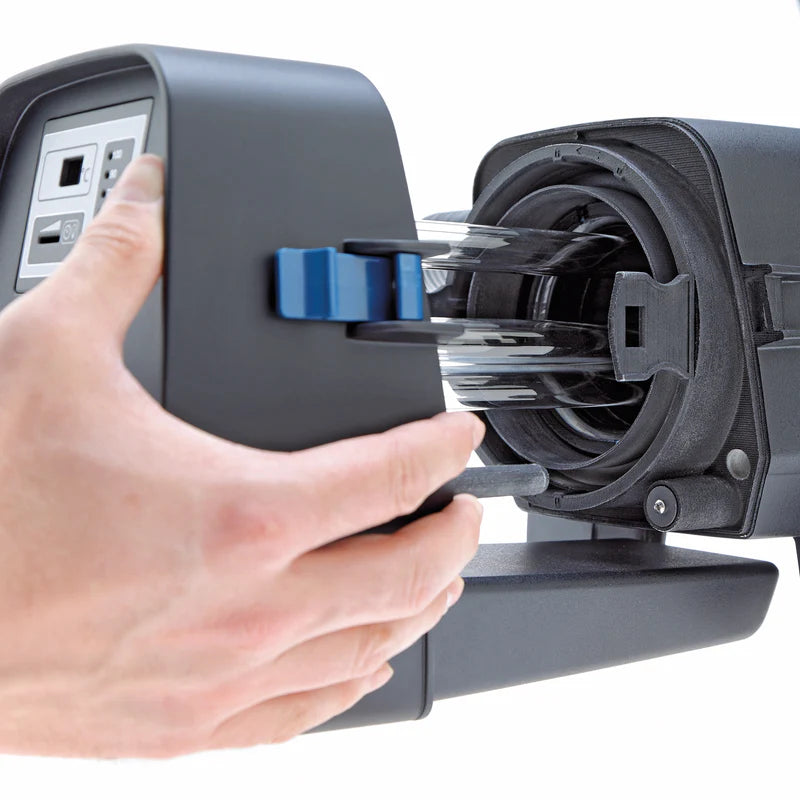

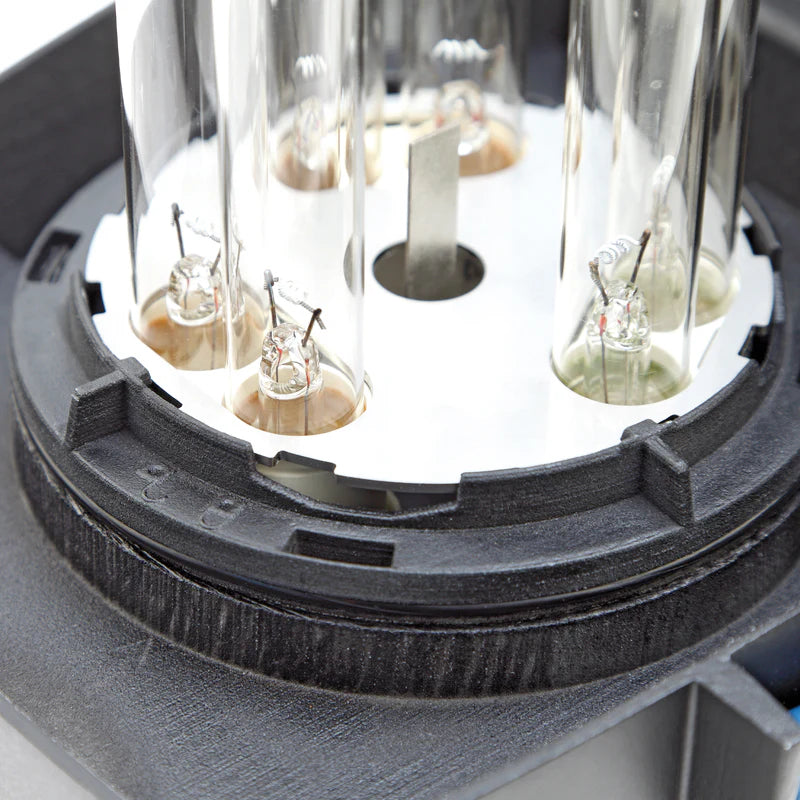

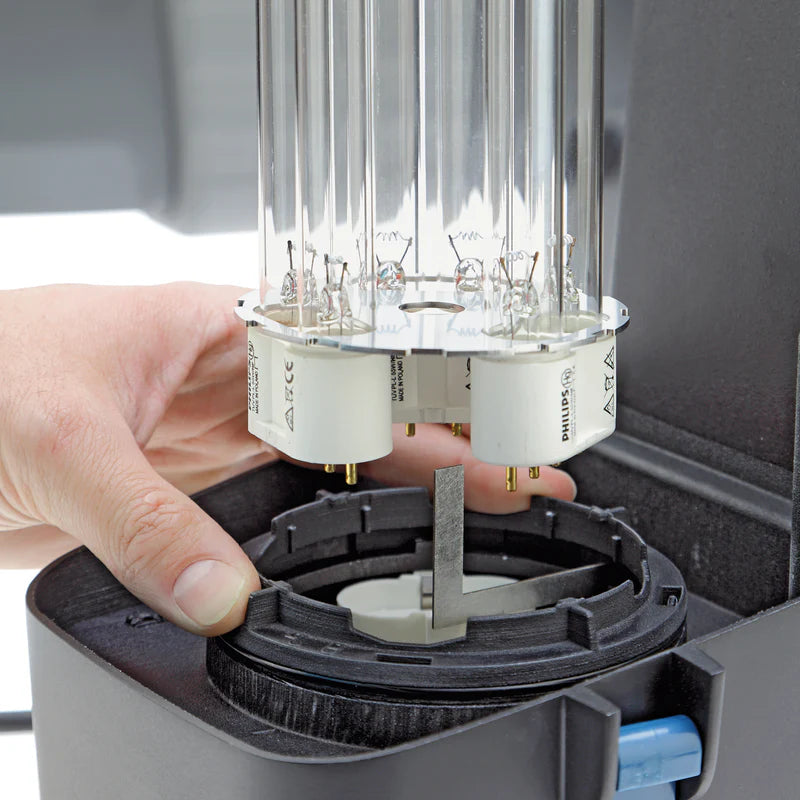

This advanced UVC system combines optimal flow rate with powerful irradiation intensity to ensure superior algae control and pathogen reduction. The innovative UVC bulb technology, developed in cooperation with Philips, offers a 50% longer service life of up to 12,000 hours — significantly reducing replacement costs.

The integrated Eco Control system automatically regulates radiation times and intelligently adjusts flow through automatic bypass control, reducing energy consumption by up to 50% while maintaining consistent cleaning performance. In Eco mode, the system can save up to 525kg of CO₂ per year, making it an environmentally responsible choice for large-scale pond filtration.

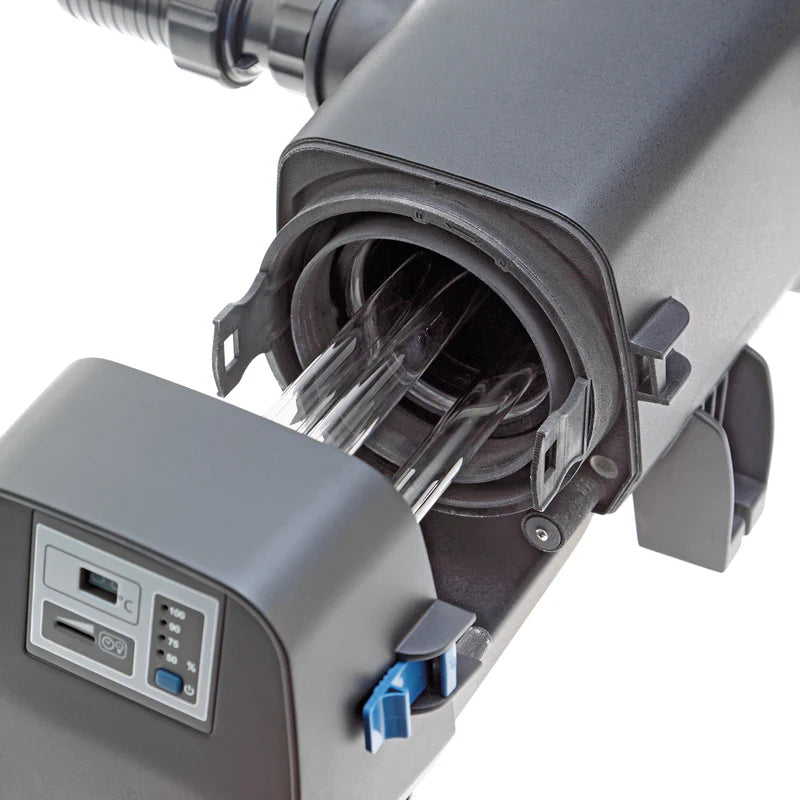

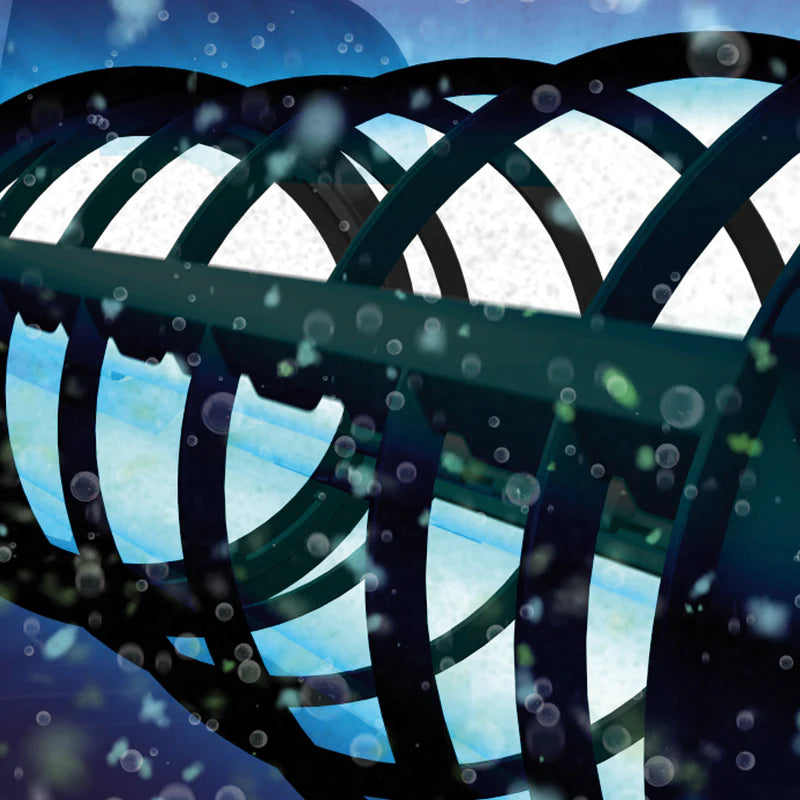

A high-volume UVC housing with organic flow design ensures extended water retention time for maximum UV exposure. The patented automatic quartz cleaning system keeps the bulb fully effective at all times without manual intervention.

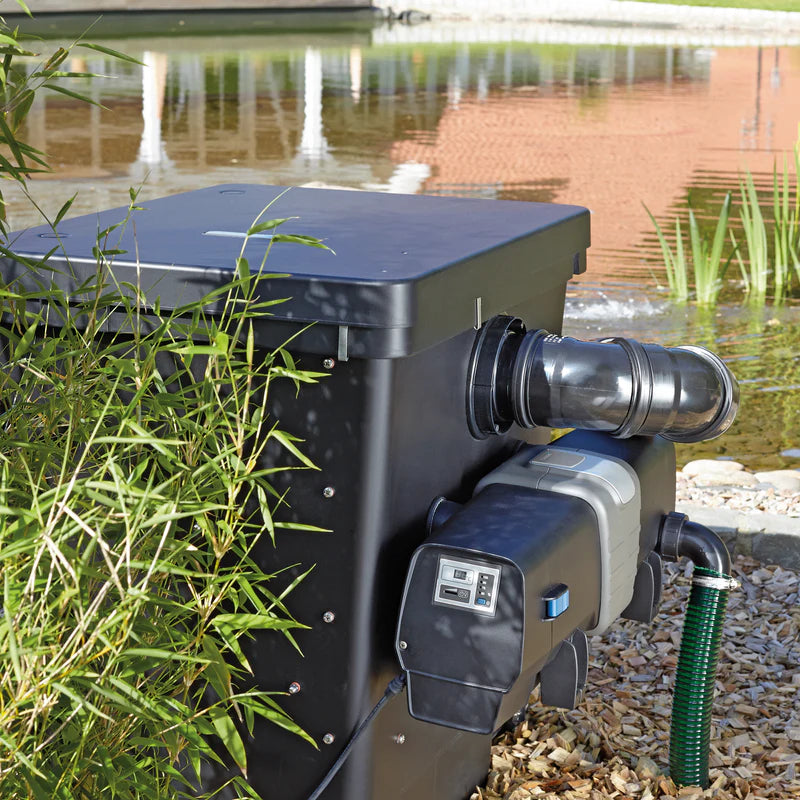

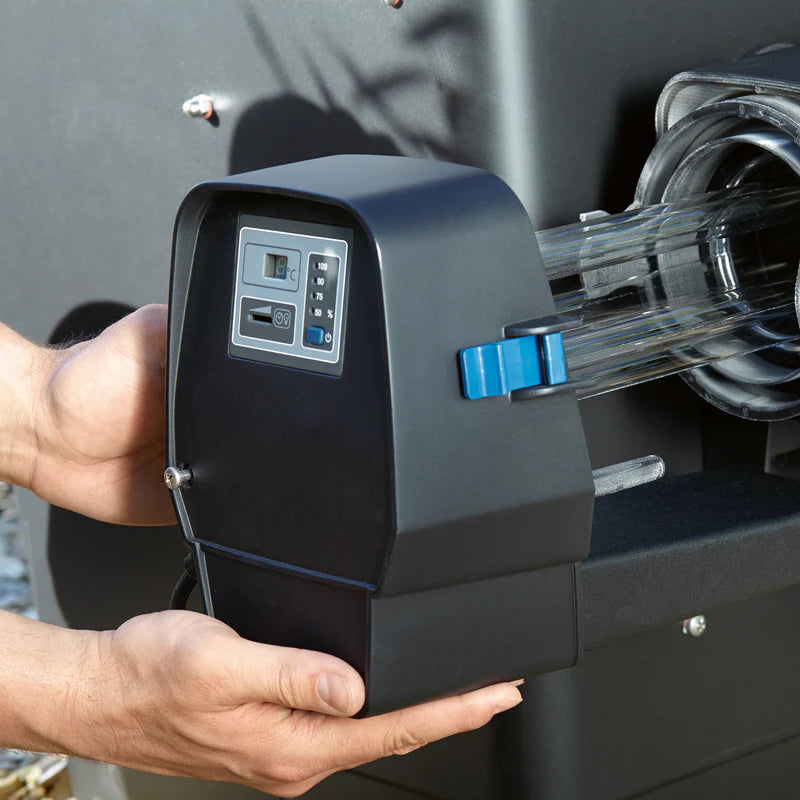

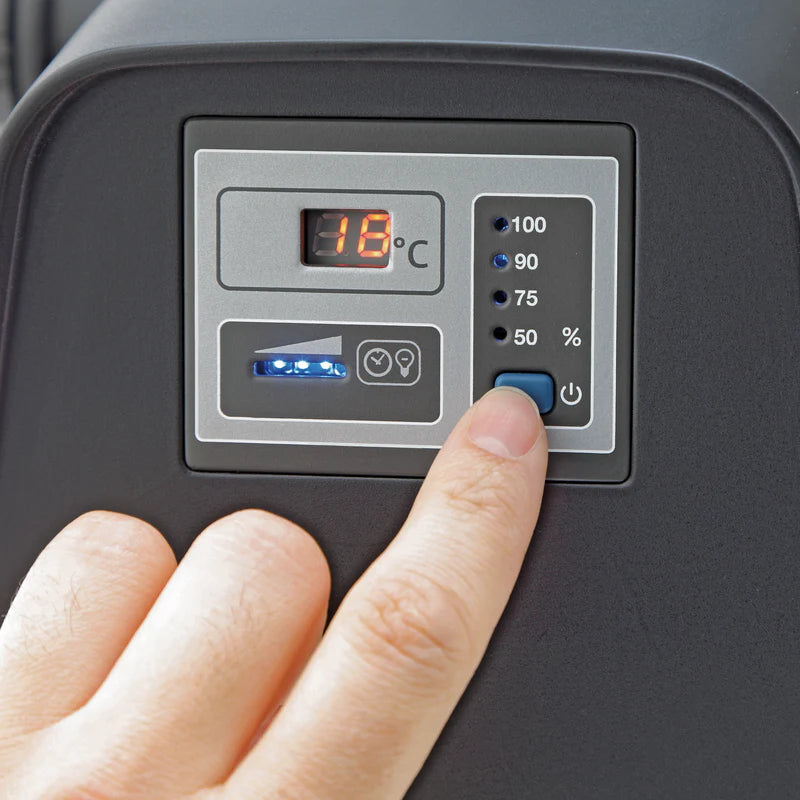

The Bitron Eco 180 features an LED function monitor, digital temperature display, operating hours counter and convenient push-button control for continuous irradiation or shutdown when required. Designed for simple integration, it connects directly to 1½" or 2" filter systems including BioTec, BioTec ScreenMatic² and ProfiClear systems.

Built for professional performance, climate-conscious operation and long-term durability, the OASE Bitron Eco 180 UVC is an advanced solution for serious pond installations.

• High-Intensity 180W UVC Power - Effective clarification for ponds up to 180m³.
• 12,000-Hour UVC Bulb Life - 50% longer service life reduces replacement costs.
• Eco Control System - Automatically regulates radiation time for up to 50% energy savings.
• Automatic Bypass Regulation - Adapts flow rate to match pump performance.

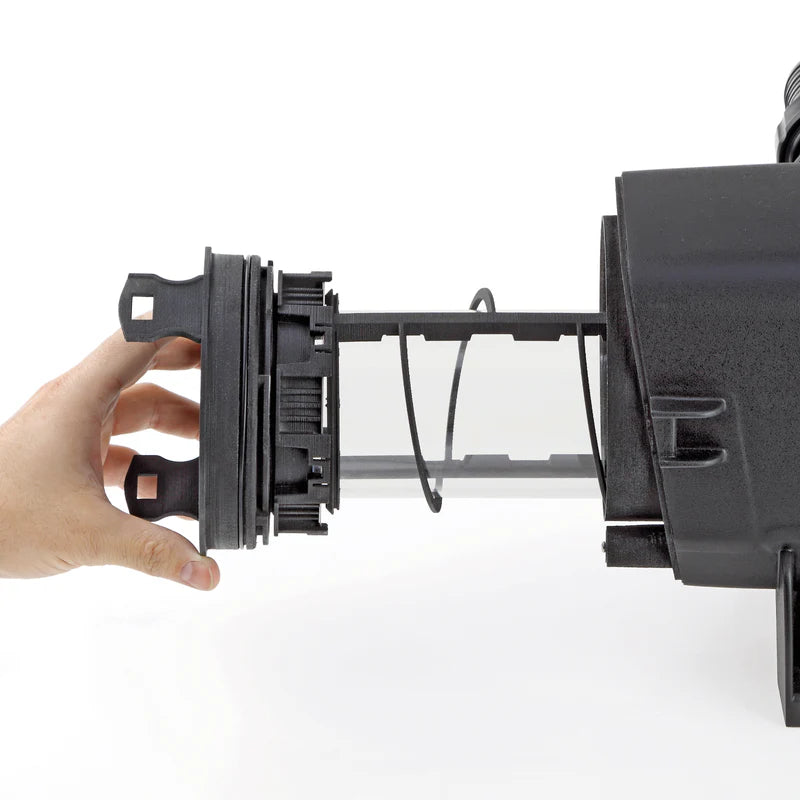

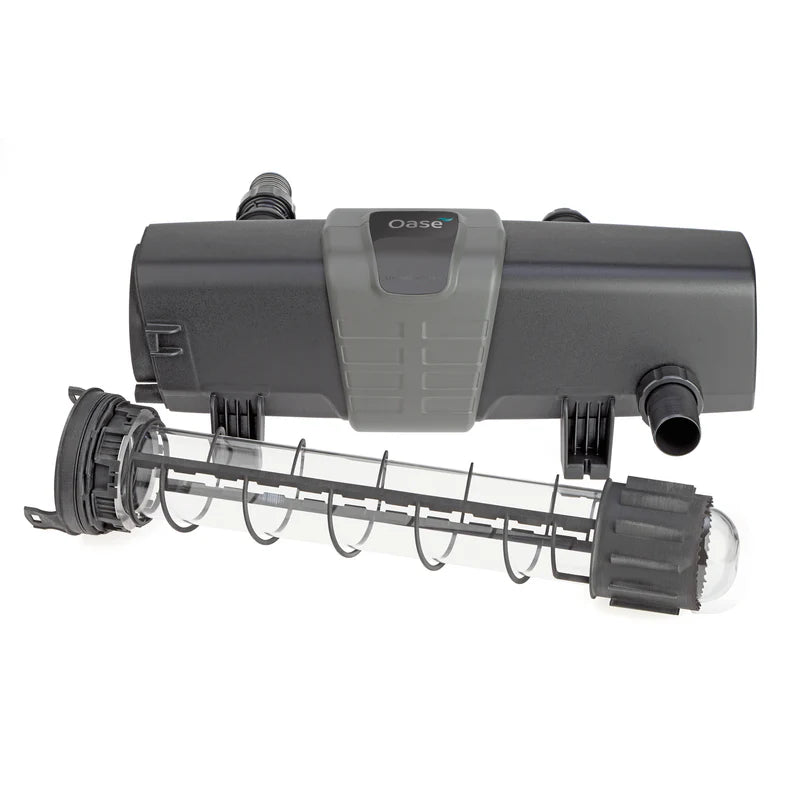

• Patented Automatic Quartz Cleaning - Ensures continuous full UVC effectiveness.
• Digital Temperature Display - Integrated monitoring for system control.
• LED Function & Bulb Monitor - Clear visual status indication.
• Heavy-Duty High-Volume Housing - Extended retention time for maximum UV exposure.
• Professional 2" System Integration - Compatible with BioTec 30, BioTec ScreenMatic² 140000 and ProfiClear systems.
• 100% Eye Protection - Safe and fully shielded UVC operation.

• Product Number: 03OU007 | 56405
• Rated Voltage: 220 - 240 V / 50/60 Hz
• Power Consumption: 180 W
• UVC Power: 180 W
• Power Cable Length: 5 m
• Net Weight: 8.25 kg
• Guarantee: 2 + 1 Years (upon registration)
• UVC Bulb Service Life: 12,000 hours
• Temperature Display: Digital
• Bypass Control: Automatic
• Function Check: LED
• Connection Inlet: 38 / 50 mm (1½", 2")
• Connection Outlet: 38 / 50 mm (1½", 2")
• Minimum Flow Rate: 10,000 l/h
• Maximum Flow Rate: 50,000 l/h
• Max Operating Pressure: 1 bar
• Suitable for Ponds (Ornamental): up to 180 m³
• Suitable for Ponds with Fish: up to 90 m³
• Suitable for Ponds with Koi: up to 45 m³
• Compatible With: BioTec 30, BioTec ScreenMatic² 140000, ProfiClear
