OASE ProfiClear Premium DF-L Pump-Fed OC Drum Filter | 260000L Pond Capacity

The OASE ProfiClear Premium DF-L Pump-Fed OC is a high-performance modular drum filter system designed for large koi ponds and demanding water installations up to 260m³ (260,000 litres). Engineered for professional water quality where space is limited, this advanced filtration system combines powerful mechanical separation with intelligent control technology.

With filtration down to 60 microns — finer than a human hair — the DF-L delivers exceptional water clarity. The automatic self-cleaning drum continuously removes debris, ensuring minimal maintenance and consistent performance. A quality high-pressure pump for drum flushing is included in the scope of delivery.

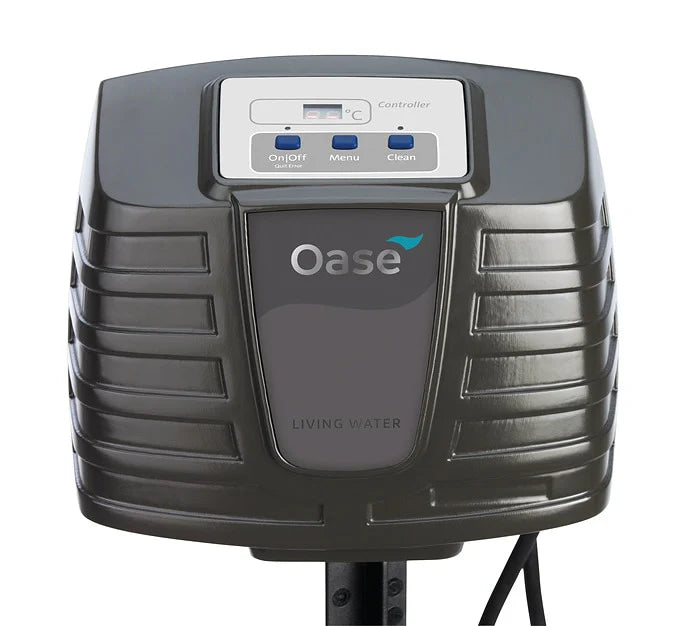

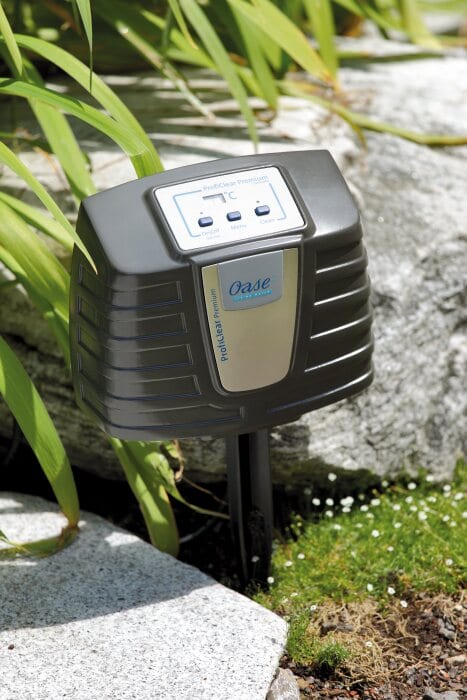

The system features intelligent microcontroller monitoring suitable for outdoor use. All functions can be controlled via the OASE Control System when paired with the optional OASE Garden Controller Cloud, allowing convenient app-based operation and monitoring.

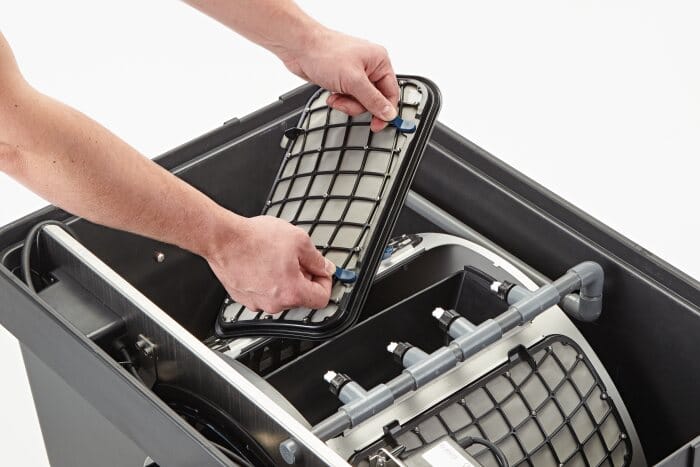

Stainless steel reinforcement elements provide structural stability, while individually removable sieve elements and a freewheel function allow easy access to the drum for servicing. The integrated safety level switch prevents jamming caused by debris particles.

With a flow capacity of up to 25m³ per hour and modular expandability, the ProfiClear Premium DF-L Pump-Fed OC delivers professional-grade mechanical and biological filtration performance.

• Suitable for Ponds up to 260,000L - Designed for large koi ponds and professional systems.
• 60 Micron Drum Filtration - Ultra-fine mechanical separation.
• Fully Automatic Self-Cleaning System - Intelligent maintenance-free drum operation.
• Flow Capacity up to 25,000 l/h - Ideal for high-demand circulation systems.
• Integrated High-Pressure Flush Pump - Included for efficient drum cleaning.
• Microcontroller Monitoring System - Outdoor-rated intelligent control.
• OASE Control Compatible - App-based control via optional Garden Controller Cloud.

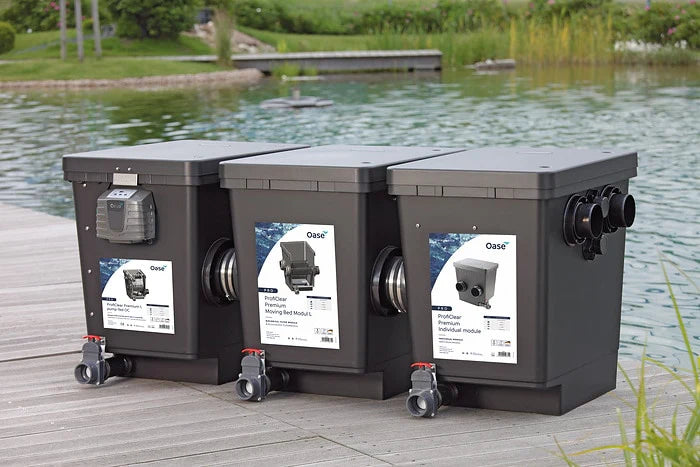

• Modular Expandable Design - Flexible configuration to suit pond requirements.
• Stainless Steel Reinforcement - Durable, stable and engineered for longevity.
• Safety Level Switch Protection - Prevents jamming due to debris buildup.

• Product Code: 03OG010 | 47003
• Filtration Fineness: 60 micron
• Filter Intake Surface: 3454 cm²
• Rinsing System: Manual / Automatic (Sensor) / Interval
• Minimum Flow Rate: 10,000 l/h
• Maximum Flow Rate: 25,000 l/h
• Inlets: 2 x 50 mm
• Outlets: 2 x 150 mm
• Sludge Discharge: 75 / 110 mm
• Installation Height Above Water Level: 40 cm
• Dimensions: 830 x 600 x 820 mm
• Weight: 76 kg
• Material: GRP Duroplast / Stainless Steel
• OASE Control Compatible: Yes
• Warranty: 2 + 1 Years (upon registration)
