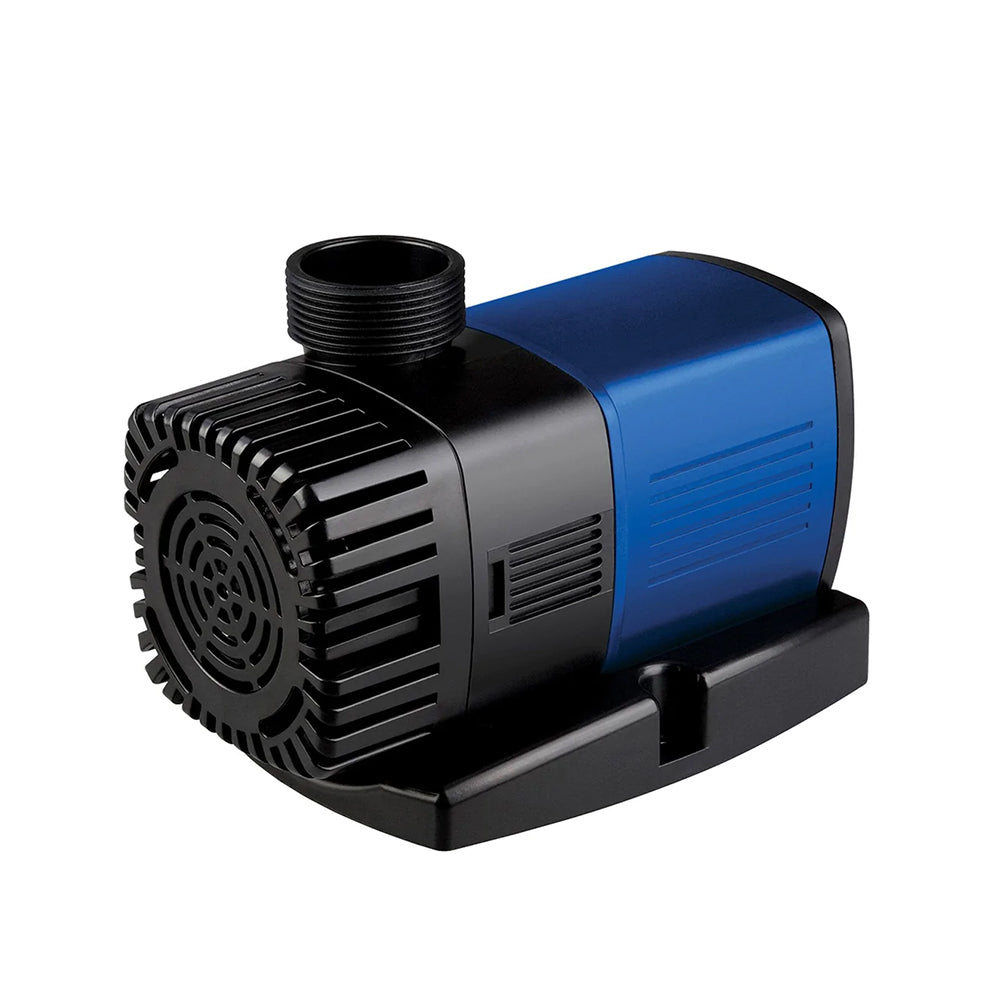

PondMAX Submersible Pump - EV11200

The PondMAX EV11200 Submersible Pump is a powerful, professional-grade model within the EVOII AC pump range, designed for large ponds, waterfalls, streams, filtration systems, and demanding water feature applications. Manufactured using advanced variable frequency motor technology, the EV11200 delivers exceptional water movement while maintaining excellent energy efficiency.

With a maximum flow rate of 11200 litres per hour and a maximum head height of 6.5 metres, this pump is ideal for high-volume circulation, elevated waterfalls, and long pipe runs. Its strong head pressure ensures consistent water delivery even in complex pond and filtration systems.

To protect the motor and extend service life, the EV11200 incorporates soft start technology and anti-burnout protection, which reduce electrical stress during startup and automatically shut down the pump if flow becomes restricted. The pump is fully marine suitable, with no exposed copper components, allowing safe use in both freshwater and saltwater environments.

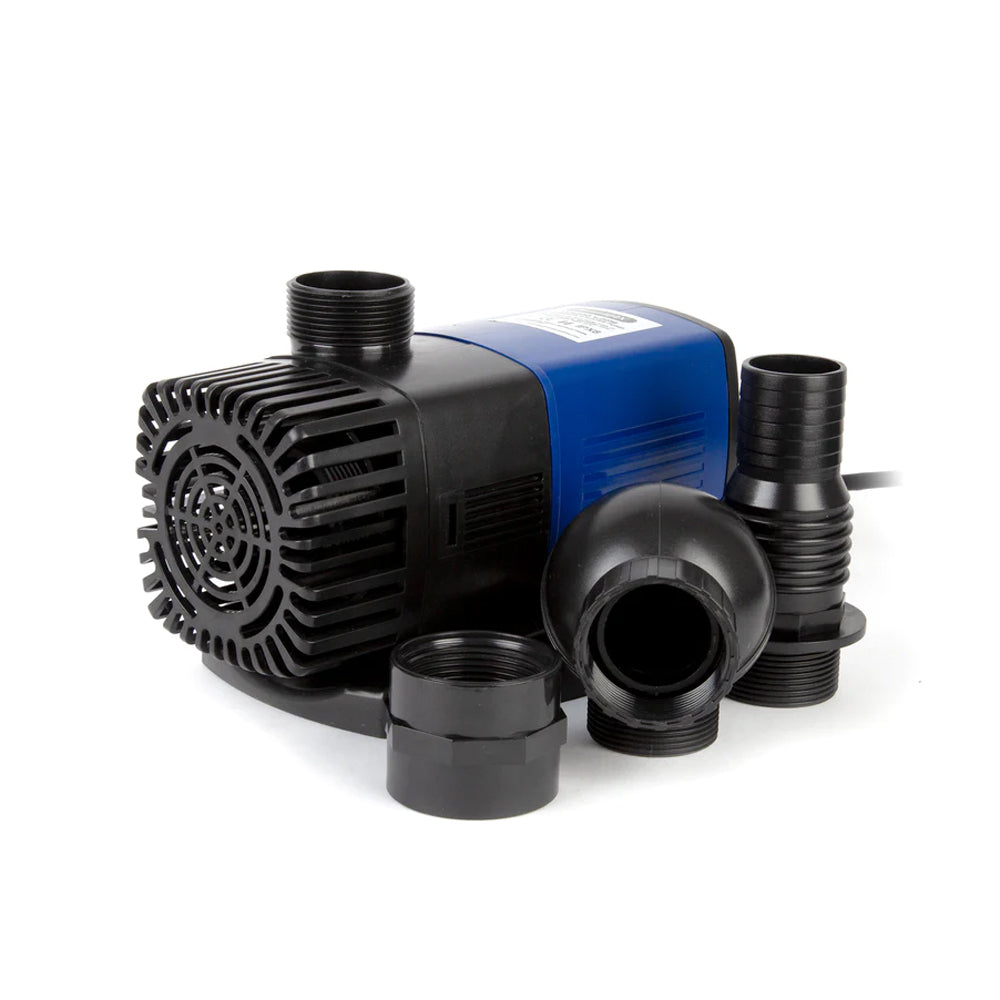

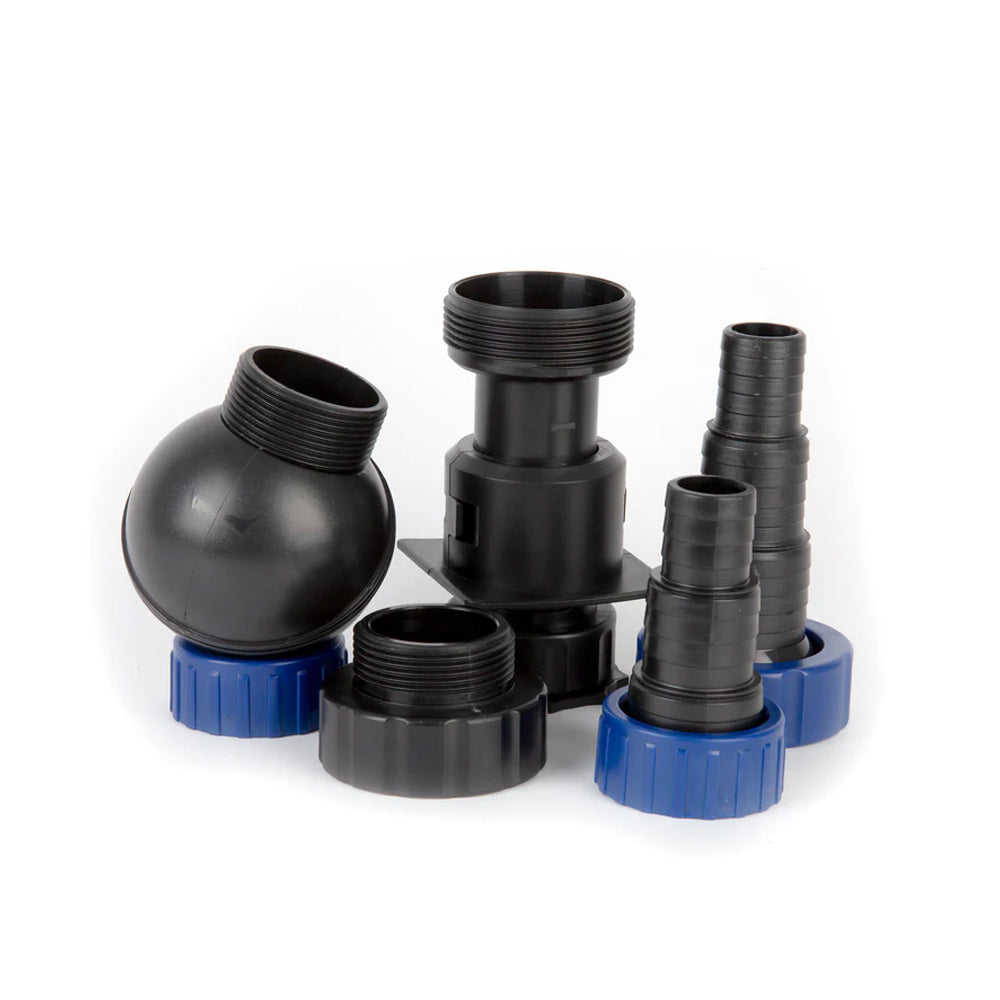

Designed for flexibility, the EV11200 features tool-less assembly for easy cleaning and maintenance and can be dry installed for inline or external configurations. Supplied with threaded inlet and outlet connections and a 10 metre power cable, the PondMAX EV11200 is continuous rated for reliable 24/7 operation.

• Marine Suitable: Safe for freshwater and saltwater environments
• Dry Installation Capable: Suitable for in-pond or external installations
• Anti-Burnout & Soft Start Technology: Protects the motor and extends service life
• Tool-less Assembly: Enables fast cleaning and maintenance
• High Flow Performance: Ideal for large ponds and waterfalls
• Continuous Rated: Designed for reliable 24/7 operation

• Product Code
  02EV250
• Model
  EV11200
• Max Flow (L/H)
  11200
• Max Head (M)
  6.5
• Power Consumption (W)
  100
• Voltage (V)
  220-240
• Frequency (Hz)
  50
• IP Rating
  IPX8
• Inlet Size (MM)
  40
• Outlet Size (MM)
  40
• Recommended Tubing Size (MM)
  50
• Operating Temperature (°C)
  0 to 35
• Cable Length (M)
  10
• Dimensions (MM) - L x W x H
  228 x 142 x 148
• Pump Weight (KG)
  3.8
• Warranty
  3 Years
