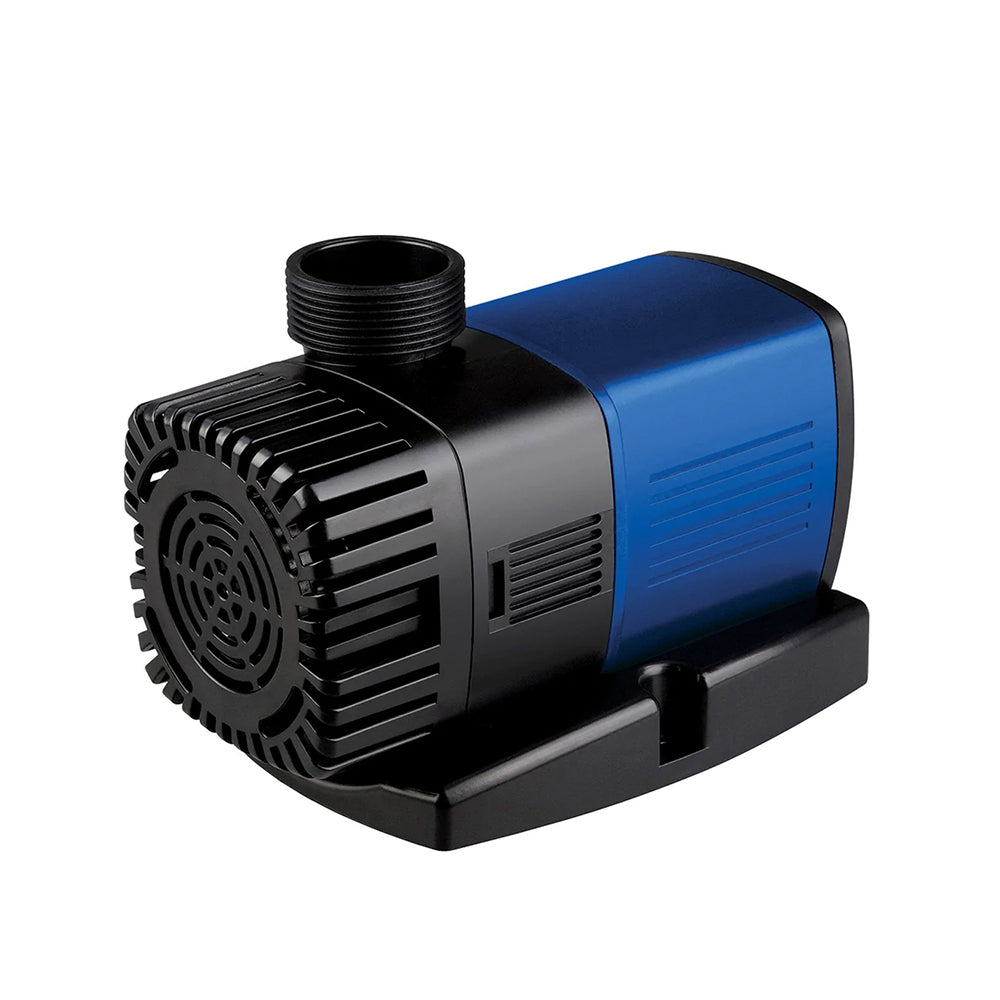

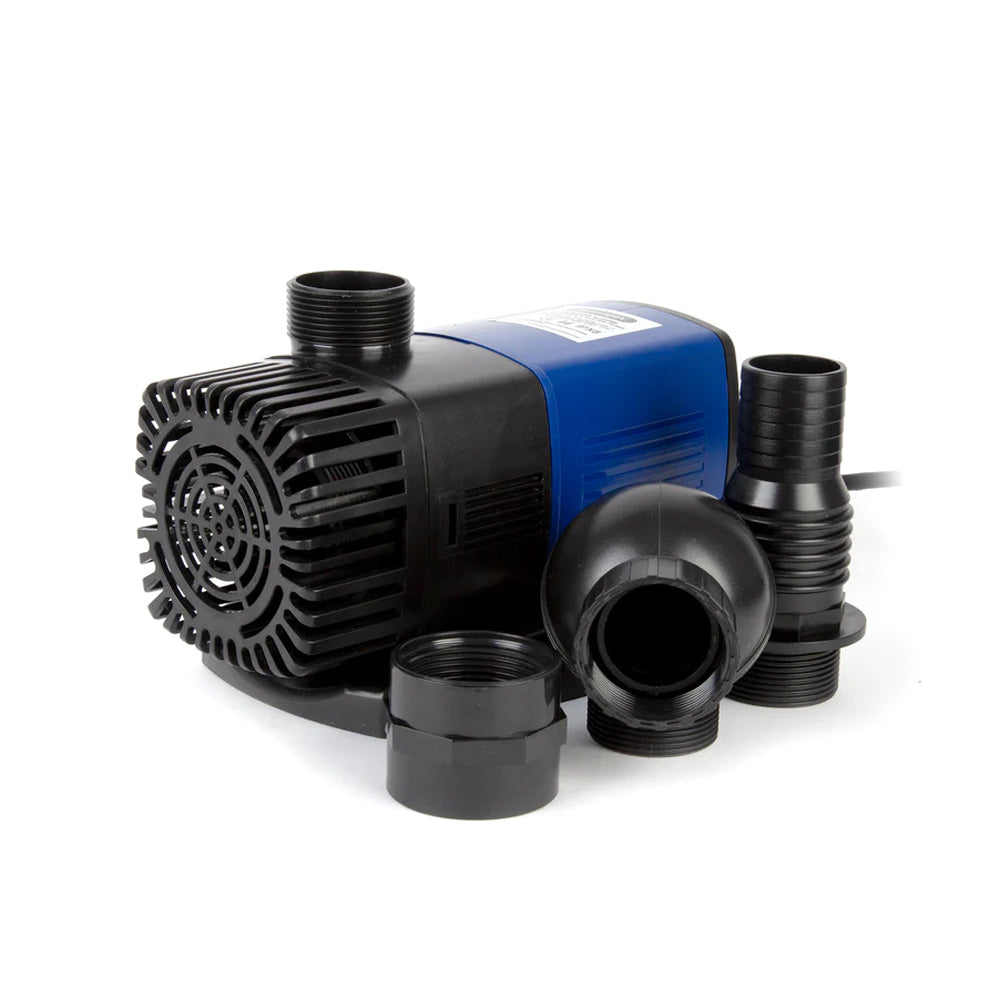

PondMAX Submersible Pump - EV13600

The PondMAX EV13600 Submersible Pump is the highest-capacity model in the EVOII AC pump range, engineered to deliver exceptional water movement for large ponds, waterfalls, streams, filtration systems, aquatic installations, and hydroponic applications. Manufactured using advanced motor and impeller technology, this pump provides outstanding performance with high energy efficiency.

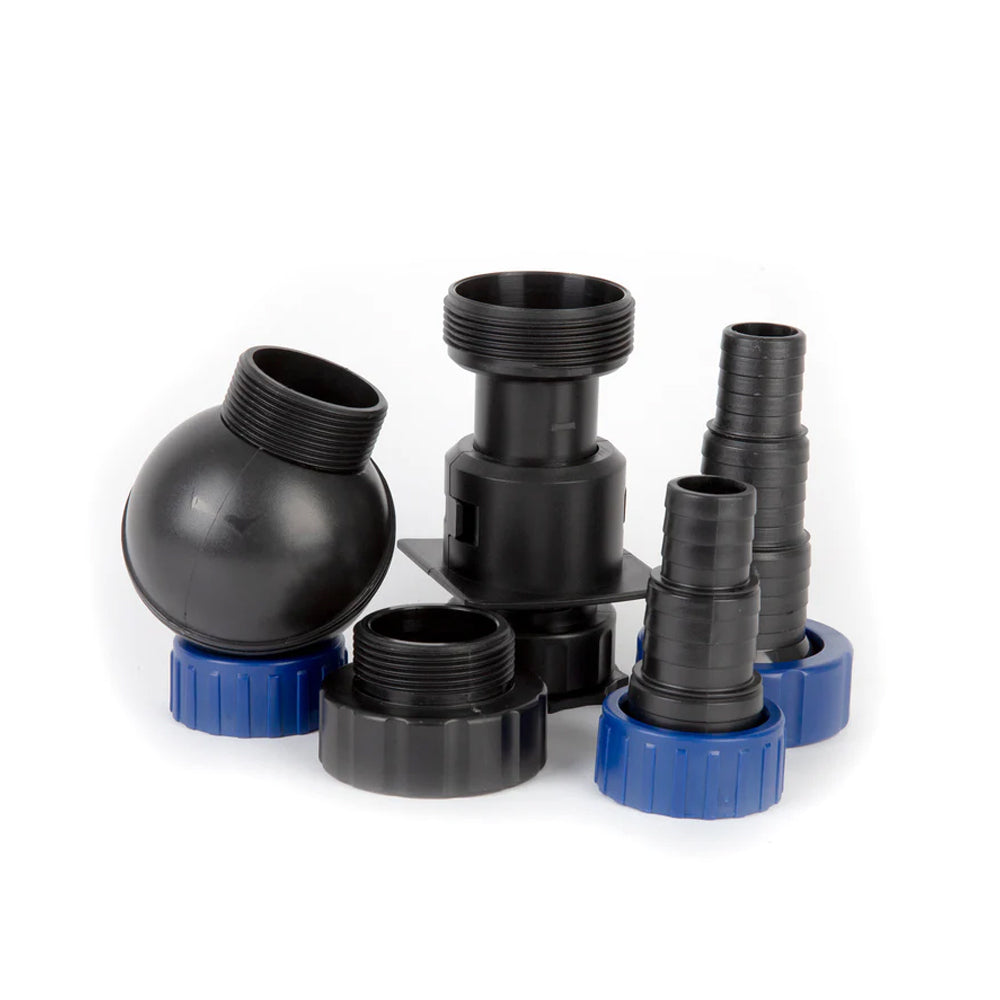

With a powerful maximum flow rate of 13600 litres per hour and an impressive maximum head height of 7.0 metres, the EV13600 is ideal for demanding applications that require strong lift and consistent high-volume circulation. The pump features threaded inlet and outlet connections, allowing easy adaptation to optional pre-filter sponges and external plumbing systems.

Designed for reliability and longevity, the EV13600 incorporates soft start technology and anti-burnout protection, reducing electrical stress during startup and protecting the motor if flow becomes restricted. The fully encapsulated motor and ceramic shaft construction ensure the pump is marine suitable, with no exposed copper components for safe freshwater or saltwater use.

Offering tool-less assembly for straightforward maintenance and the ability to be dry installed, the PondMAX EV13600 provides installation flexibility for professional pond builders and advanced DIY users. Supplied with a 10 metre power cable and rated for continuous 24/7 operation, it is a dependable solution for high-performance pond and water feature systems.

• Dry Installation Capable: Suitable for in-pond or external installations
• Marine Suitable: No exposed copper components for saltwater applications
• Anti-Burnout & Soft Start Technology: Protects the motor and extends service life
• Tool-less Assembly: Enables easy maintenance without special tools
• High Flow Performance: Designed for large ponds, waterfalls, and filtration systems
• Continuous Rated: Engineered for reliable 24/7 operation

• Product Code
  02EV275
• Model
  EV13600
• Max Flow (L/H)
  13600
• Max Head (M)
  7.0
• Power Consumption (W)
  230
• Voltage (V)
  220-240
• Frequency (Hz)
  50
• IP Rating
  IPX8
• Inlet Size (MM)
  40
• Outlet Size (MM)
  40
• Recommended Tubing Size (MM)
  50
• Operating Temperature (°C)
  0 to 35
• Cable Length (M)
  10
• Dimensions (MM) - L x W x H
  228 x 142 x 148
• Pump Weight (KG)
  3.8
• Warranty
  3 Years
