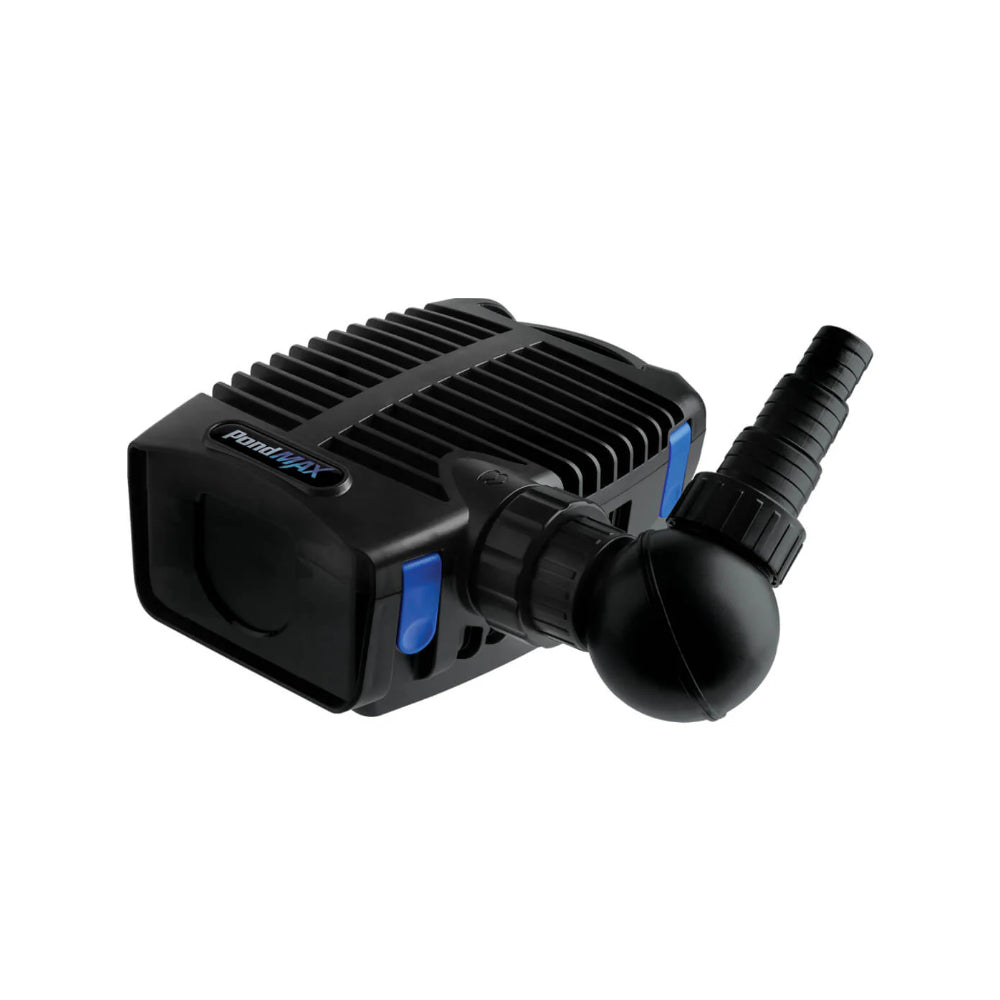

PondMAX Filtration/Waterfall Pump - PU10500

The PondMAX PU10500 Filtration and Waterfall Pump is a powerful and robust solution engineered for large koi ponds, high-capacity filtration systems, waterfalls and demanding water circulation applications. Designed with advanced variable frequency motor technology, this pump delivers strong and consistent flow while maintaining excellent energy efficiency.

Equipped with soft start and intelligent anti-jam protection, the PU10500 actively reduces startup stress and prevents motor burnout in the event of blockages. If flow is restricted, the pump automatically adjusts motor speed or cuts power to protect internal components, ensuring long service life and dependable operation.

With an impressive maximum flow rate of 10500 litres per hour and a head height of up to 5.6 metres, the PondMAX PU10500 is ideal for driving pressurised filters, biological filtration systems and large waterfall returns. Tool-less assembly allows for fast access and easy maintenance, making this pump suitable for both DIY pond owners and professional pond installers across Australia.

• Tool-Less Assembly – Enables quick and easy access for cleaning and maintenance without specialised tools
• Energy Efficient Operation – High flow output with efficient 100W power consumption
• Anti-Burnout Technology – Soft start and anti-jam protection help prevent motor damage caused by blockages

• Product Code
  02PD044
• Model
  PU10500
• Max Flow (L/H)
  10500
• Max Head (M)
  5.6
• Power Consumption (W)
  100
• Voltage (V)
  220 - 240 AC
• Frequency (Hz)
  50
• IP Rating
  IPX8
• Pump Inlet BSP Thread
  38mm Male
• Pump Outlet BSP Thread
  38mm Male
• Stepped Hosetail Inlet (MM)
  25, 32, 38
• Stepped Hosetail Outlet (MM)
  25, 32, 38
• Recommended Tubing Size (MM)
  38
• Operating Temperature (°C)
  0 to 35
• Cable Length (M)
  10
• Dimensions (MM)
  298 x 238 x 130 (W x H x D)
• Duty Rating
  Continuous Duty (24/7)
• Warranty
  3 Years
